General Description:

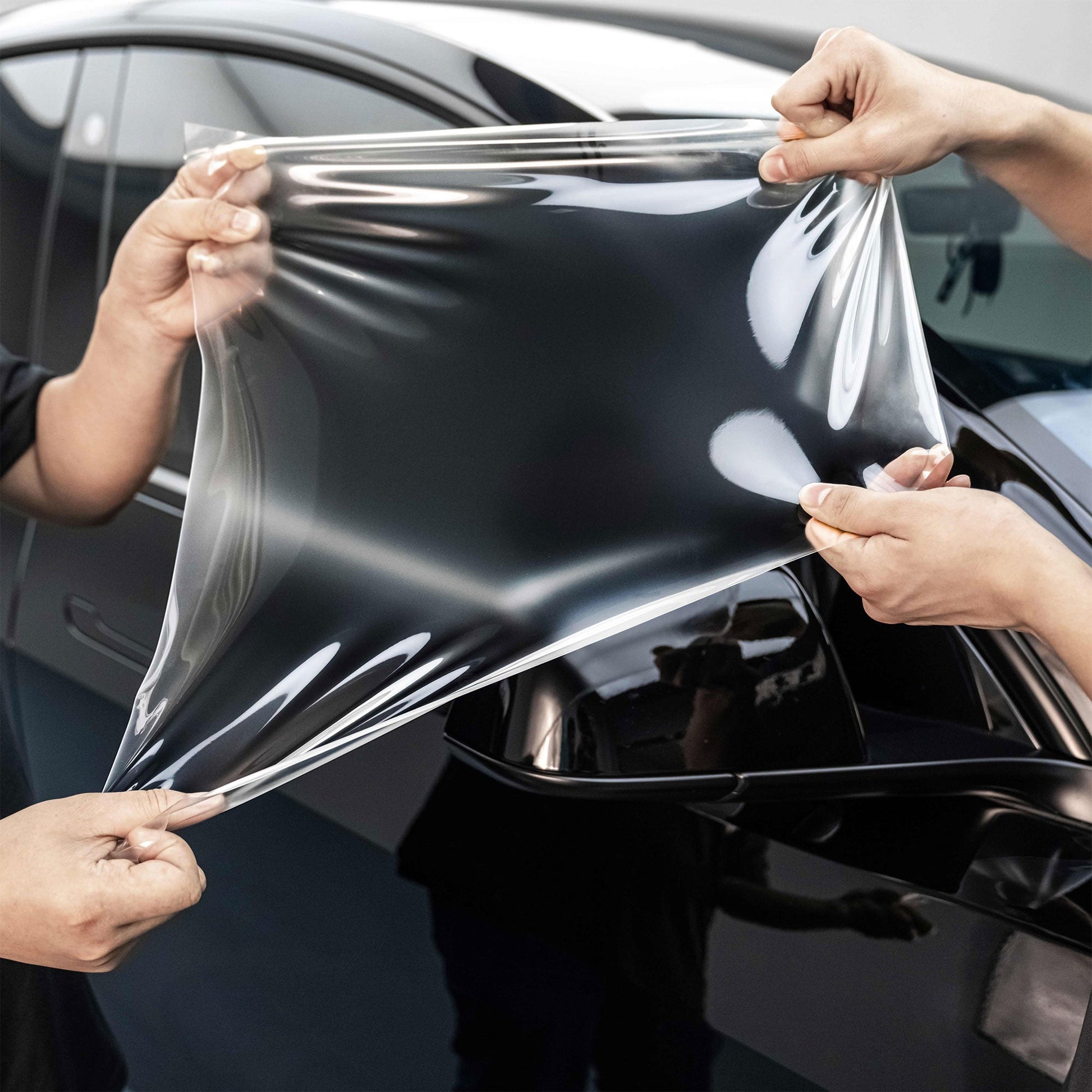

VinylFrog paint protection film UG20 series is a high performance and self-adhesive thermoplastic polyurethane in transparent clear gloss designed to protect a vehicle's finish against; stone chips, road debris, insect stains, small to medium scratches, chemical stains and weathering without degrading the original paint.

Key features of VinylFrog Paint Protection Film Series include:

▲Flexible clearcoat enables ease of installation.

▲Superior clarity without “orange peel”

▲Outstanding scratch and stain resistance

▲Excellent durability with superior resistance to yellowing and cracking

Product Structure



Physical properties

Classification		Unit	Spec	Remark
Thickness	Clearcoat	um	50±2%	PET
	Self-healing Coat	um	6.5±2%	/
	Face Film	um	200±5%	Thermoplastic Polyurethane
	Acrylic Adhesive	um	25±2%	Solvent based
	Release liner	um	75±2%	Satin Semi-transparent
Surface		－	Glossy Clear	Super Glossy
Width/roll		mm	1520±0. 01%	5ft
Length/roll		mm	1500+1%	49.21ft
Adhesive appearance		-	Clear

Physical Performance

Features		Test Method	Results
Holding Power(h)		paste on steel board, hang on by 25mm*25mm*1kg weight under 29℃ and 55%, GB/T4851-1998	>75
Initial tack N/25mm		under 24℃ and 26%, GB31125-2014	9.44
Peel Strength N/25mm		paste on steel board, 180° 15 Minutes under 29℃and 55%, GB/T2792-1998	9.29
Release Force(N/25mm)		paste on steel board, 90° 26℃ and 60%, GB2792	0.25
Gloss(60°)		GB 8807	≥90(%)

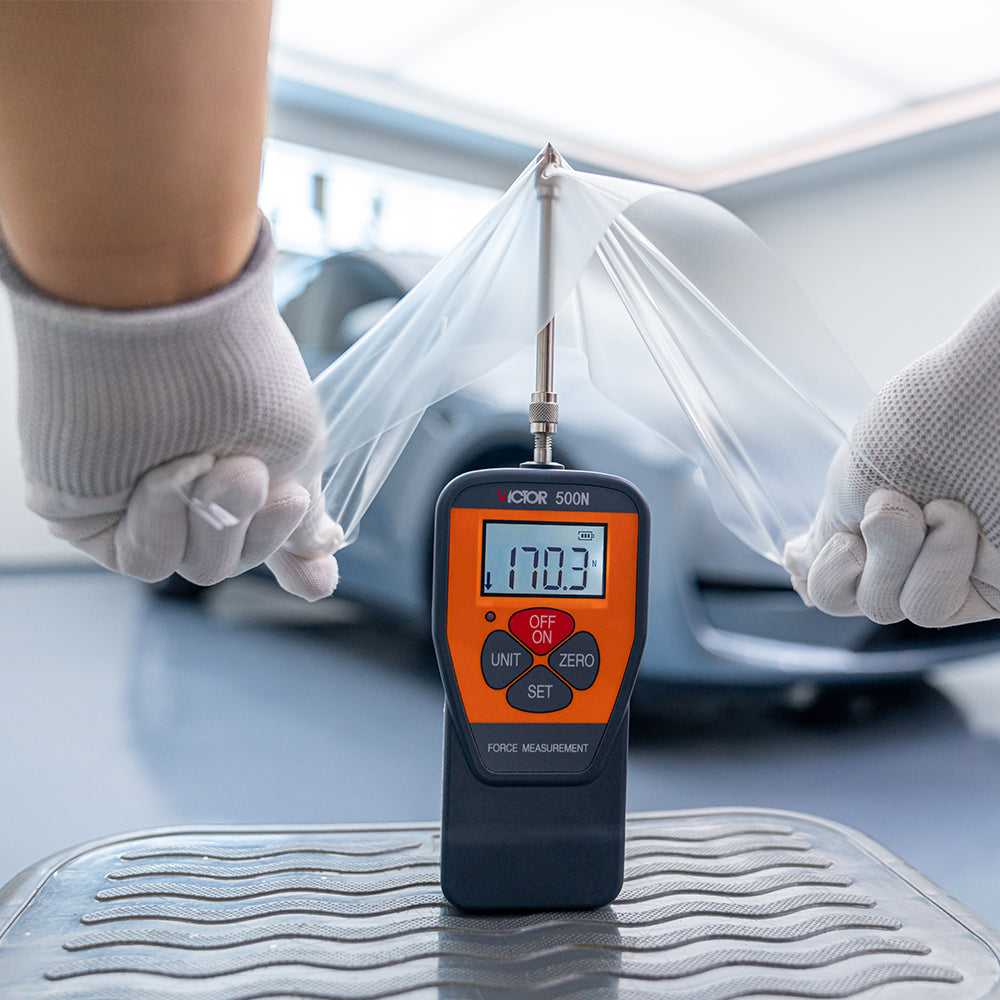

Elongation at Break		GB/T 1040	≥420
Tensile Strength		GB/T 1040	≥22(Mpa)
Elongation at Break of Self-healing Coat		GB/T 1040	≥85
Humidity Resistance		120 hours exposure	No Detrimental Effect
Salt spray Resistance		120 hours exposure	No Detrimental Effect
Water Resistance		120 hours immersion	No Detrimental Effect
Chemical Resistance		1hour diesel oil immersion,4hours antifreeze immersion	No Detrimental Effect
Aging Tests		70℃ and 7 days 90℃ and 7 days	No adhesive residue with heat No Adhesive Residue without Heat
Application Temperature		/	'+20℃ to +25℃
Service Temperature		/	'-20℃ to +80℃

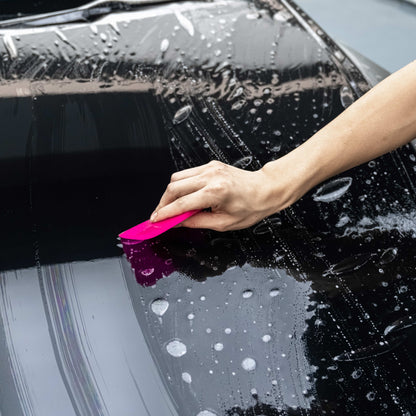

Application Method		Wet only	/
Substrate types		OEM Paint	/



Shelf life:

2 years from date of purchase when stored at 50°F to 80°F (15°C – 25°C) and 45% to 50% relative humidity.

Optimum recommended storage conditions are 72°F (22°C) and 50% relative humidity.

Common Applications:

▲ Protection of the highly sensitive external surfaces of the vehicle like; bumper, side mirrors, hood, headlight & wheel arches.

▲ Protection of internal surfaces like, luggage racks or chairs in busses or trains

▲ Protection of surfaces in high traffic areas like, reception desks, door impact areas, wall panels and more

▲ Partial colour change to high gloss black to accentuate specific car parts like roof, mirrors, hood and more
