General Description:

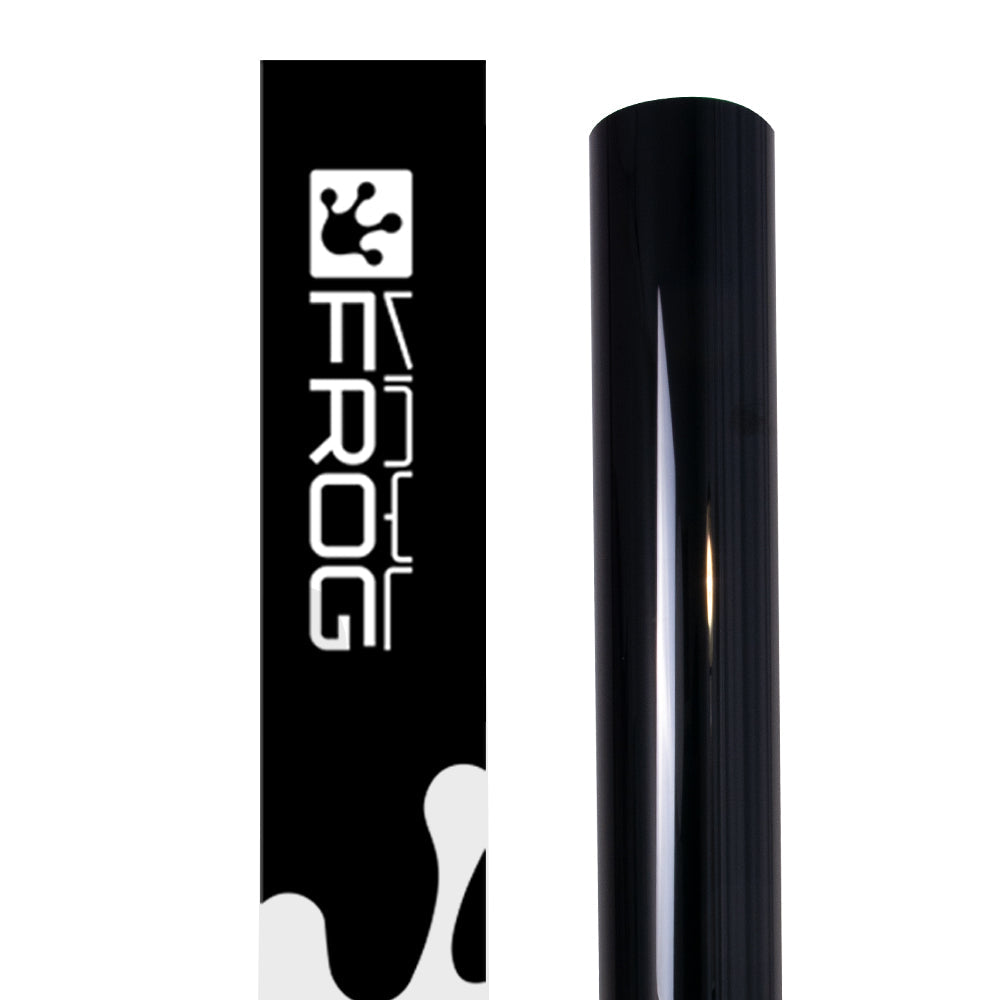

VinylFrog paint protection film UG15B series is a high performance and self-adhesive thermoplastic polyurethane in gloss black designed to protect a vehicle's finish against; stone chips, road debris, insect stains, small to medium scratches, chemical stains and weathering without degrading the original paint.



Key features of VinylFrog Paint Protection Film Series include:

▲Flexible clearcoat enables ease of installation.

▲Superior clarity without “orange peel”

▲Outstanding scratch and stain resistance

▲Excellent durability with superior resistance to yellowing and cracking

Product Structure



Product Structure

Classification		Unit	Spec	Remark
Thickness	Clearcoat	um	50±2%	PET
	Self-healing Coat	um	6.5±2%	/
	Face Film	um	150±5%	Thermoplastic Polyurethane
	Acrylic Adhesive	um	25±2%	Solvent based
	Release liner	um	75±2%	Satin Semi-transparent
Surface		－	Glossy Black	Super Glossy
Width		mm	1520±0. 01%	5ft
Length		mm	1500+1%	49.21ft
Adhesive appearance		-	Clear

Product Performance

Features		Test Method	Results
Holding Power(h)		paste on steel board, hang on by 25mm*25mm*1kg weight under 29℃ and 55%, GB/T4851-1998	>75
Initial tack N/25mm		under 24℃ and 26%, GB31125-2014	9.5
Peel Strength N/25mm		paste on steel board, 180° 15 Minutes under 29℃and 55%, GB/T2792-1998	9.35
Release Force(N/25mm)		paste on steel board, 90° 26℃ and 60%, GB2792	0.27
Gloss(60°)		GB 8807	≥90(%)
Elongation at Break		GB/T 1040	≥350
Tensile Strength		GB/T 1040	≥20 (Mpa)
Elongation at Break of Self-healing Coat		GB/T 1040	≥85
Humidity Resistance		120 hours exposure	No Detrimental Effect
Salt spray Resistance		120 hours exposure	No Detrimental Effect
Water Resistance		120 hours immersion	No Detrimental Effect
Chemical Resistance		1hour diesel oil immersion,4hours antifreeze immersion	No Detrimental Effect
Aging Tests		70℃ and 7 days 90℃ and 7 days	No adhesive residue with heat No Adhesive Residue without Heat
Application Temperature		/	'+20℃ to +25℃
Service Temperature		/	'-20℃ to +80℃
Application Method		Wet only	/
Substrate types		OEM Paint	/



Shelf life:

2 years from date of purchase when stored at 50°F to 80°F (15°C – 25°C) and 45% to 50% relative humidity.

Optimum recommended storage conditions are 72°F (22°C) and 50% relative humidity.

Common Applications:

▲ Protection of the highly sensitive external surfaces of the vehicle like; bumper, side mirrors, hood, headlight & wheel arches.

▲ Protection of internal surfaces like, luggage racks or chairs in busses or trains

▲ Protection of surfaces in high traffic areas like, reception desks, door impact areas, wall panels and more

▲ Partial colour change to high gloss black to accentuate specific car parts like roof, mirrors, hood and more

Important Notice:

Information on physical and chemical characteristics and values in this document are based upon tests we believe to be reliable and do not constitute a warranty. They are intended only as a source of information and are given without guarantee and do not constitute a warranty. Purchasers should independently determine, prior to use, the suitability of this material to their specific use. All technical data are subject to change. In case of any ambiguities or differences between the English and foreign versions of this document, the English version shall be prevailing and leading.

Warranty, Limited Remedy, and Disclaimer:

Unless an additional warranty is specifically stated on the applicable VinylFrog product packaging or product literature, VinylFrog warrants that each VinylFrog product meets the applicable VinylFrog product specification at the time VinylFrog ships the product. VinylFrog MAKES NO OTHER WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR ANY IMPLIED WARRANTY OR CONDITION ARISING OUT OF A COURSE OF DEALING, CUSTOM OR USAGE OF TRADE. If the VinylFrog product does not conform to this warranty, then the sole and exclusive remedy is, at VinylFrog’s option, replacement of the VinylFrog product or refund of the purchase price.

Limitation of Liability:

Except where prohibited by law, VinylFrog will not be liable for any loss or damage arising from the VinylFrog product, whether direct, indirect, special, incidental or consequential, regardless of the legal theory asserted, including warranty, contract, negligence or strict liability.
