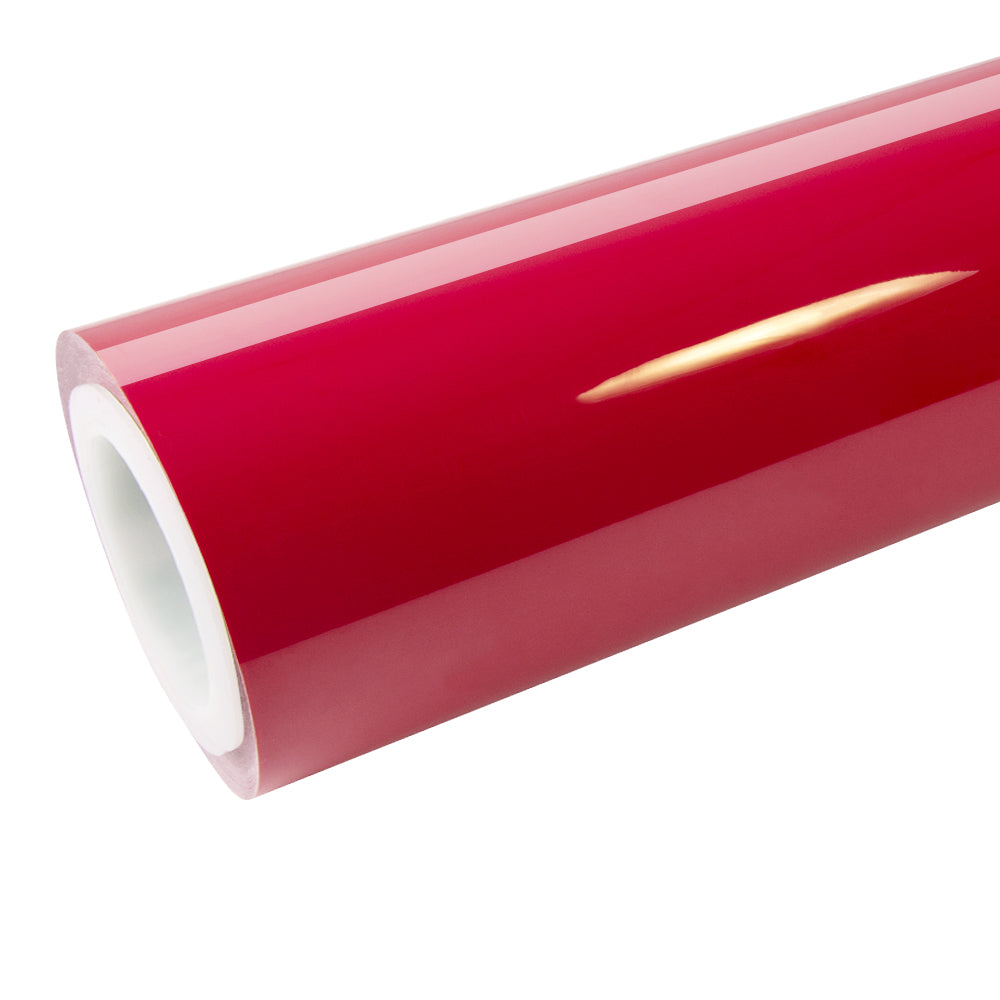

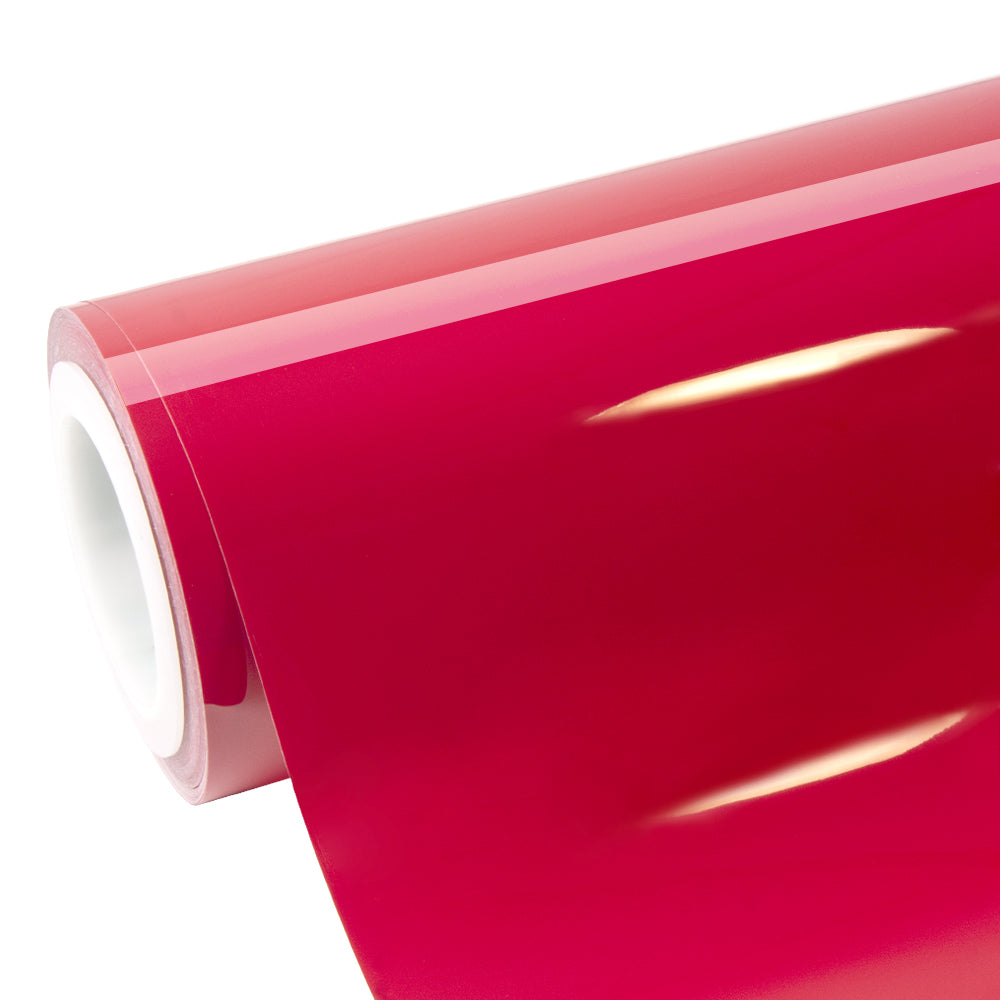

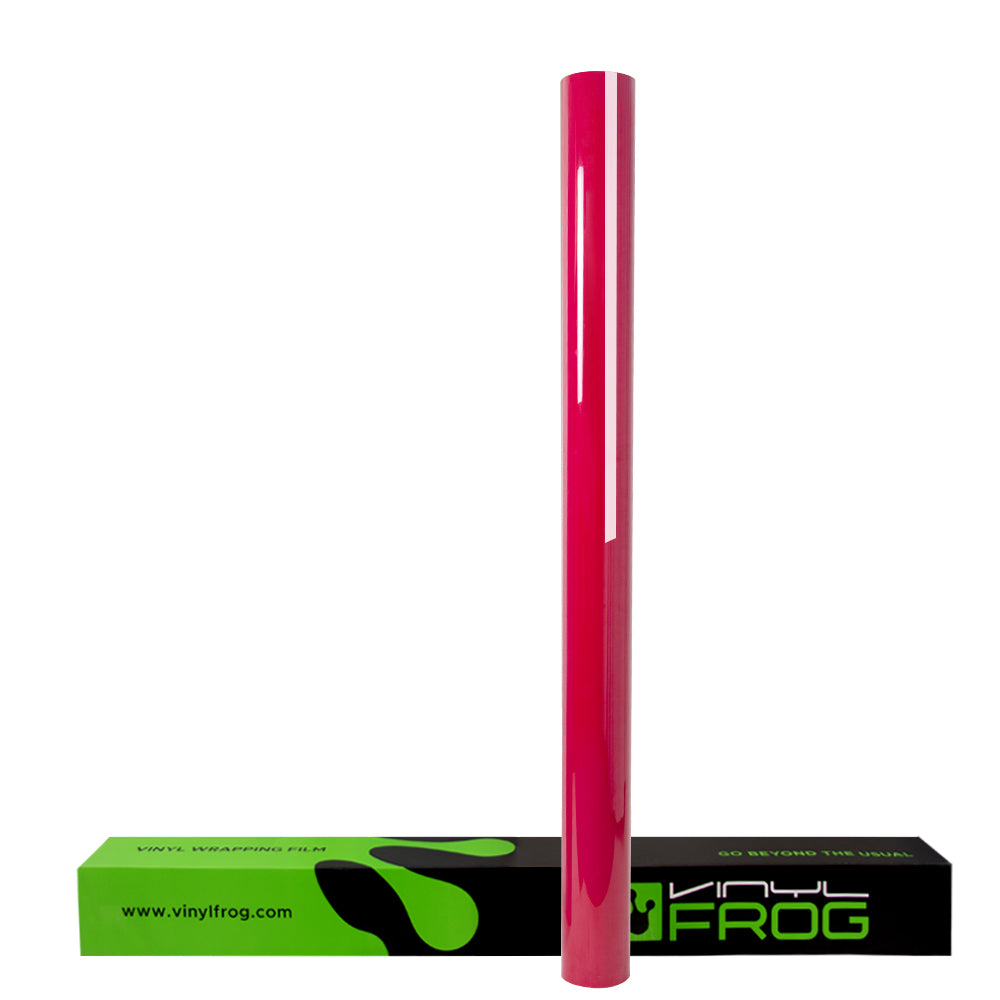

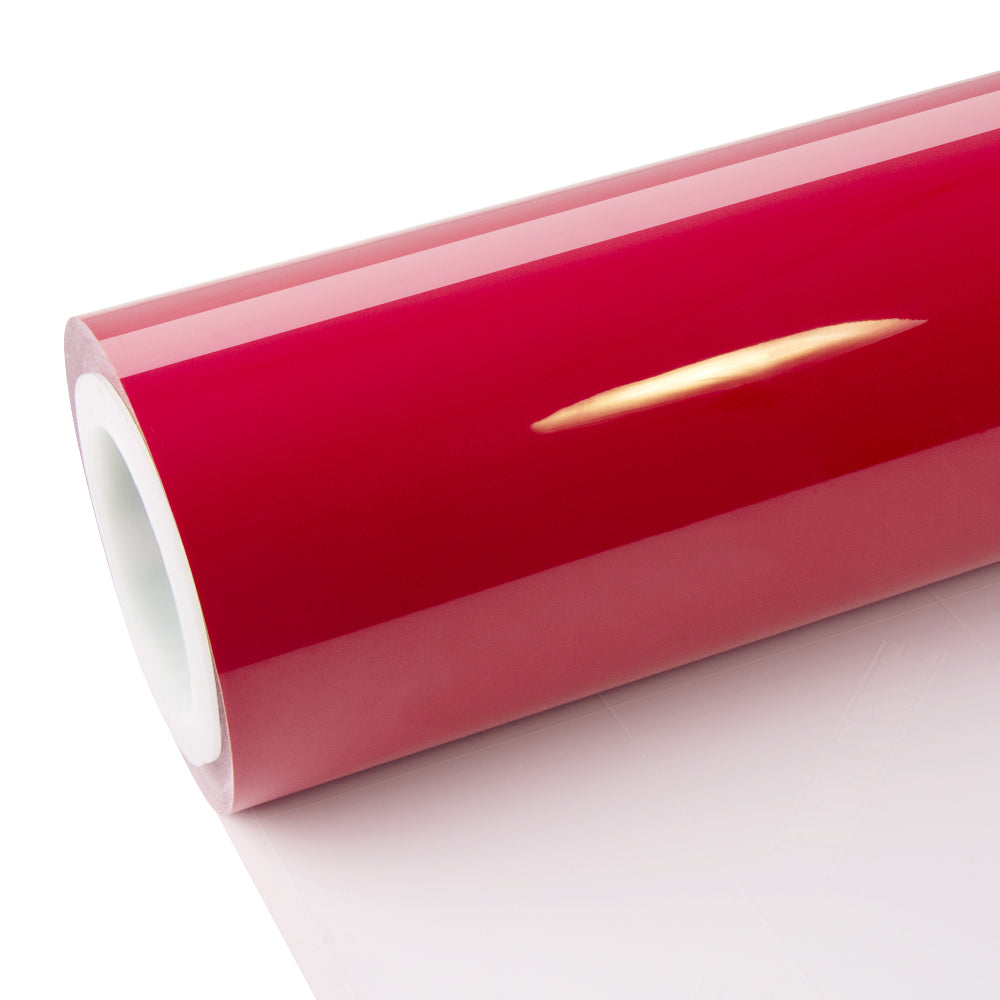

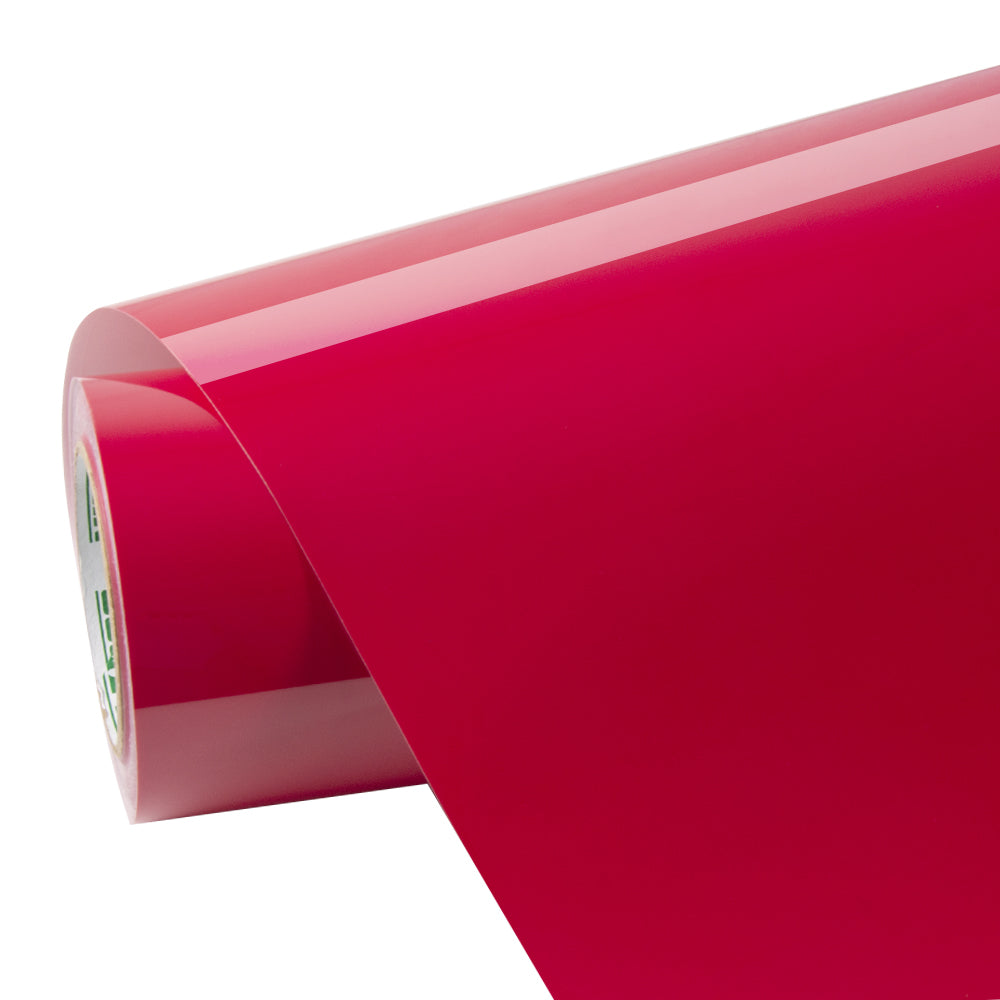

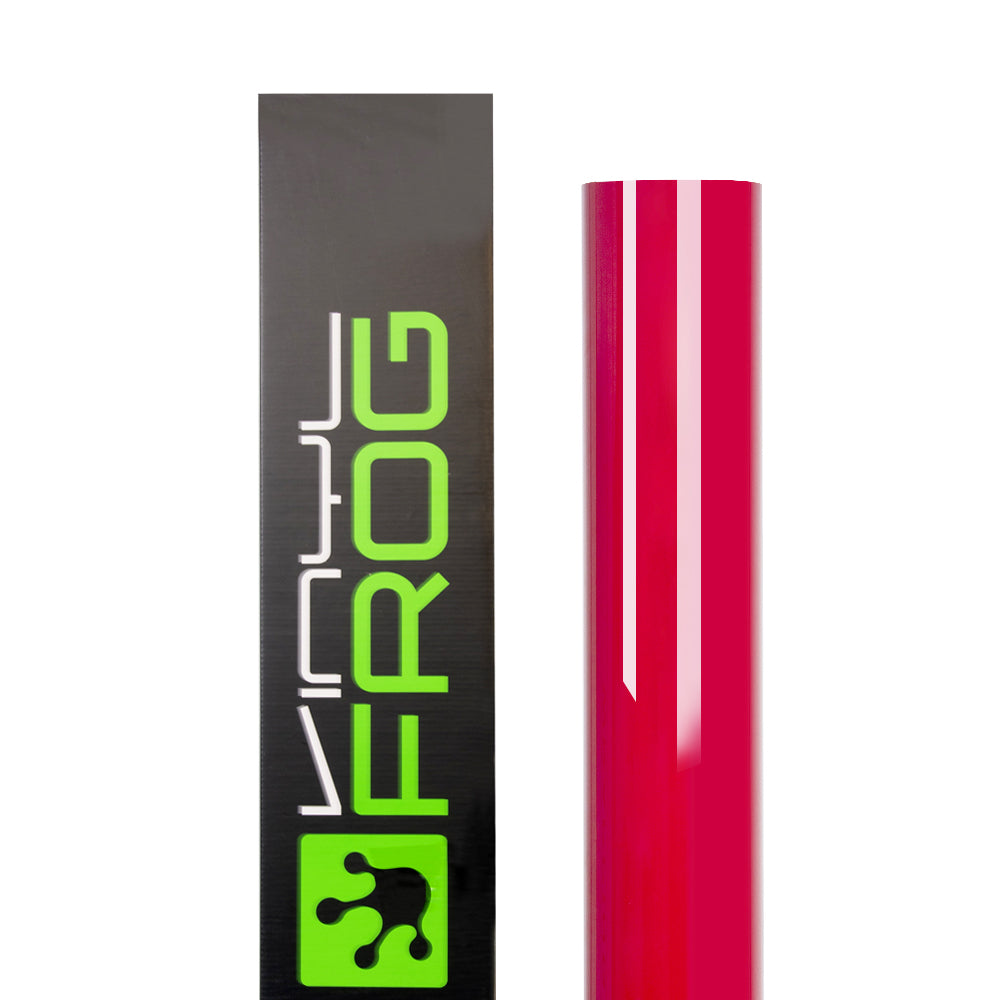

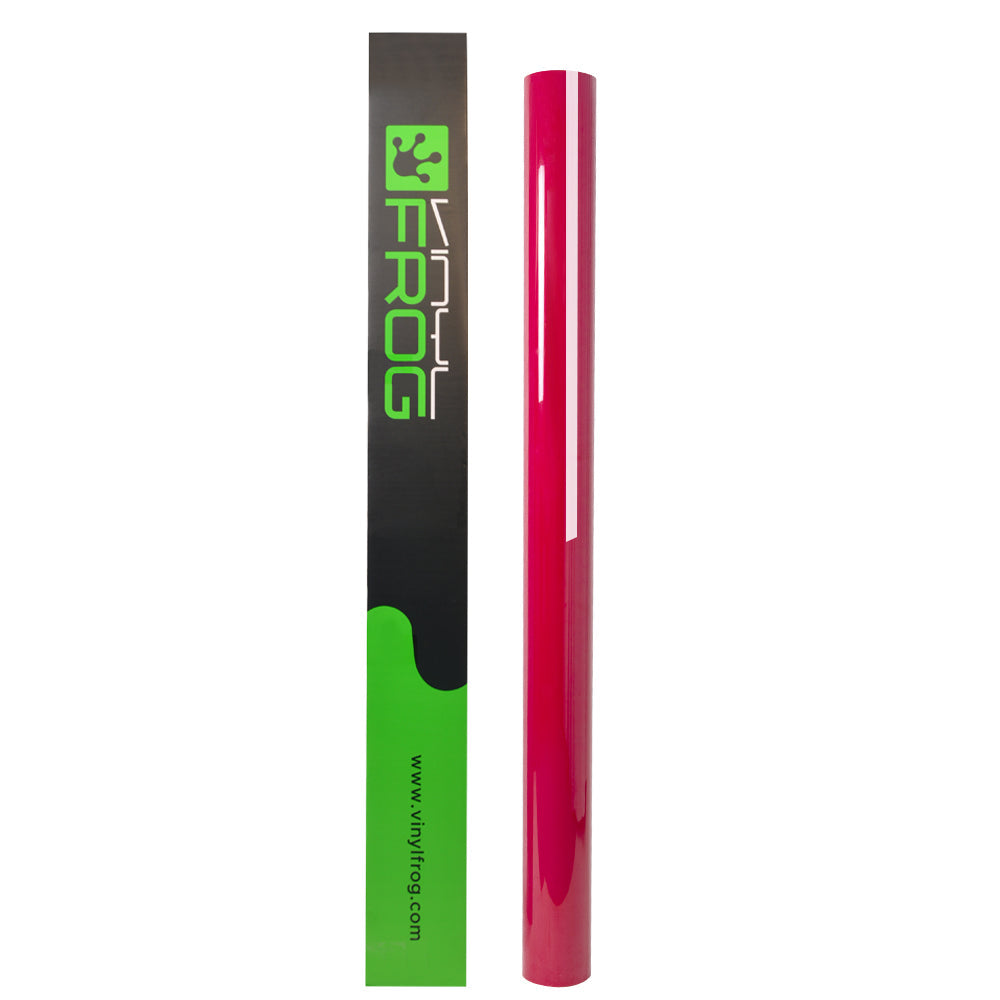

Super Glossy Carmine Red Vinyl Wrap

Video

Structure

Our products are composed of 4 layers, starting from the outer edge is 1st layer that is to protects the underneath vinyl and is called the protection layer. After that, the high-grade polymeric vinyl is supported with pressure-sensitive acrylic adhesive. Lastly, there is a layer of 160g double-sided silicone coated release liner.



Material

• High Grade Polymeric Calendared Vinyl Film
• Fashionable, Stunning Color

• With Air Release Channel
• Bubble-free Application

• Slideable; Repositionable

Medium Stretchable

The Maximum is 30 %

Easy To Wrap

Functions

Recommended Uses

 ▲ Standard Size & Appearance

Classification		Unit	Spec	Remark
Thickness	Top protected film	um	36±2%	PET/PVC
	Surface materials	um	115±2%	High-grade PVC-Polymeric
	Glue	um	30±2%	High-quality Solvent-based
	Release liner	um	180±2%(paper)/ 130±2%(plastic)	－
Surface		－	Opaque	－
Width		mm	1520±0. 01%	－
Length		mm	1800+1%	－



Physical properties

▲ General Properties

Features		Test Method	Results
Release force N/25mm		25℃ and 50%	0.12
Initial tack g/25mm		under 26℃ and 64%, GB31125-2014	987
Peel Strength N/25mm		25℃and 42%, GB/T2792-1998	7.25
Holding power(h)		25℃ and 50%, GB/T4851-1998	72.09
Shelf life		stored in +10°C to +20°C, relative humidity 50%, in original package, away from direct sunlight, clean and dry place	2 years
Application temperature		/	+20℃ to +30℃
Aging Test 1		7 days under 65°C	No adhesive residue with heat
Aging Test 2		10 days under 65°C	No adhesive residue without heat
Shrinkage		/	less than 4%





This product is intended for application on horizontal surfaces such as car bodies and bumpers. Do not attempt to wrap vertical or curved surfaces. This product is NOT intended for application on glass, mirrors, or painted surfaces. The vinyl will crack or peel off if applied to these surfaces.

Features Super Glossy Carmine Red Vinyl Wrap:

• Glossy finish
• High-quality vinyl material
• Outstanding durability, flexibility, and adhesiveness
• Resistant to tears and scuffs
• Full-color spectrum in a single sheet!

Since these wraps are made from vinyl, they are waterproof, so they can be cleaned easily with a damp cloth or sponge. By doing this, we can ensure that the wrap always looks clean and fresh.

Recommended application tools: Squeegee, buffer, knife, masking tape, heat gun, magnets, gloves, IRR thermometer, IRR heater
Application method: Standard methods for calendered films. No overstretching and overheating and Post heating is necessary.
Post-heating temperature: 110°C flat surfaces, 130°C curves, and overlaps
Aftercare: PH neutral, Avoid wax or solvents

CAUTION!
The images, colors, and finishes on the screen are approximate. For the real representation of the product always check the color swatch.
