Structure

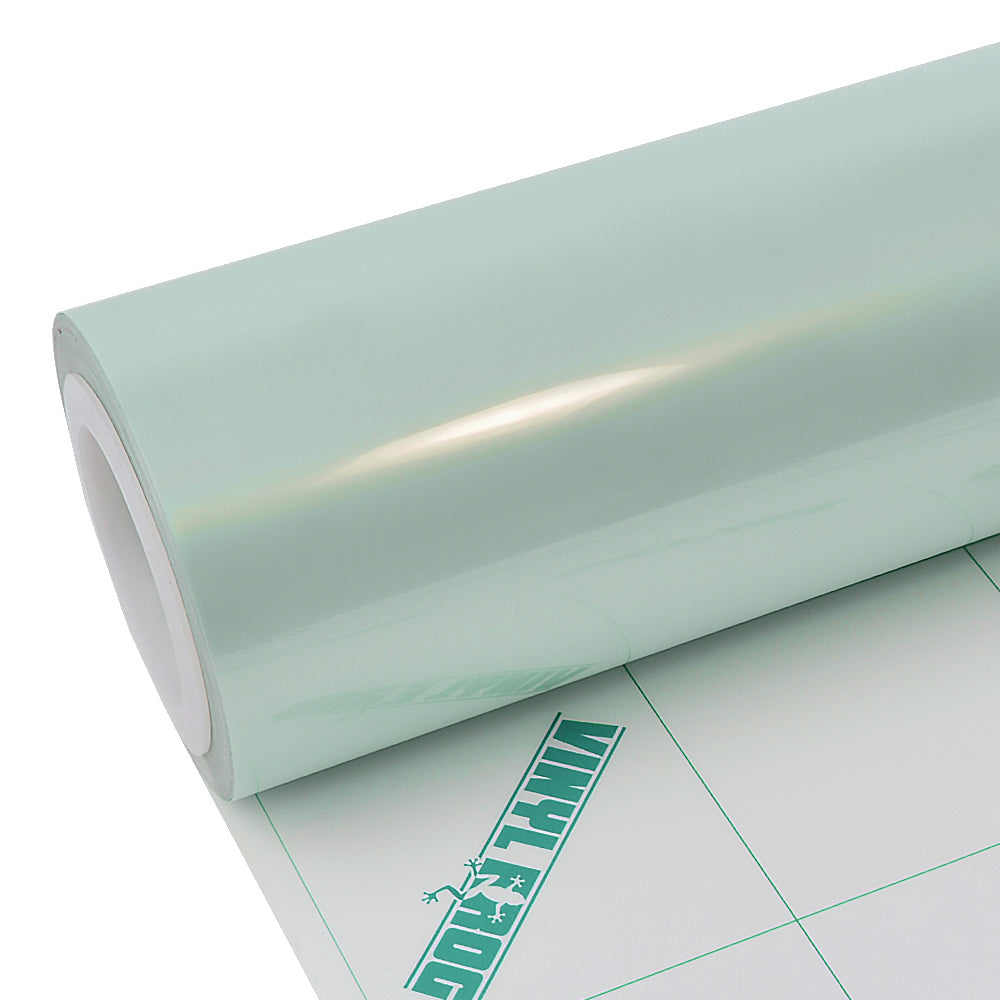

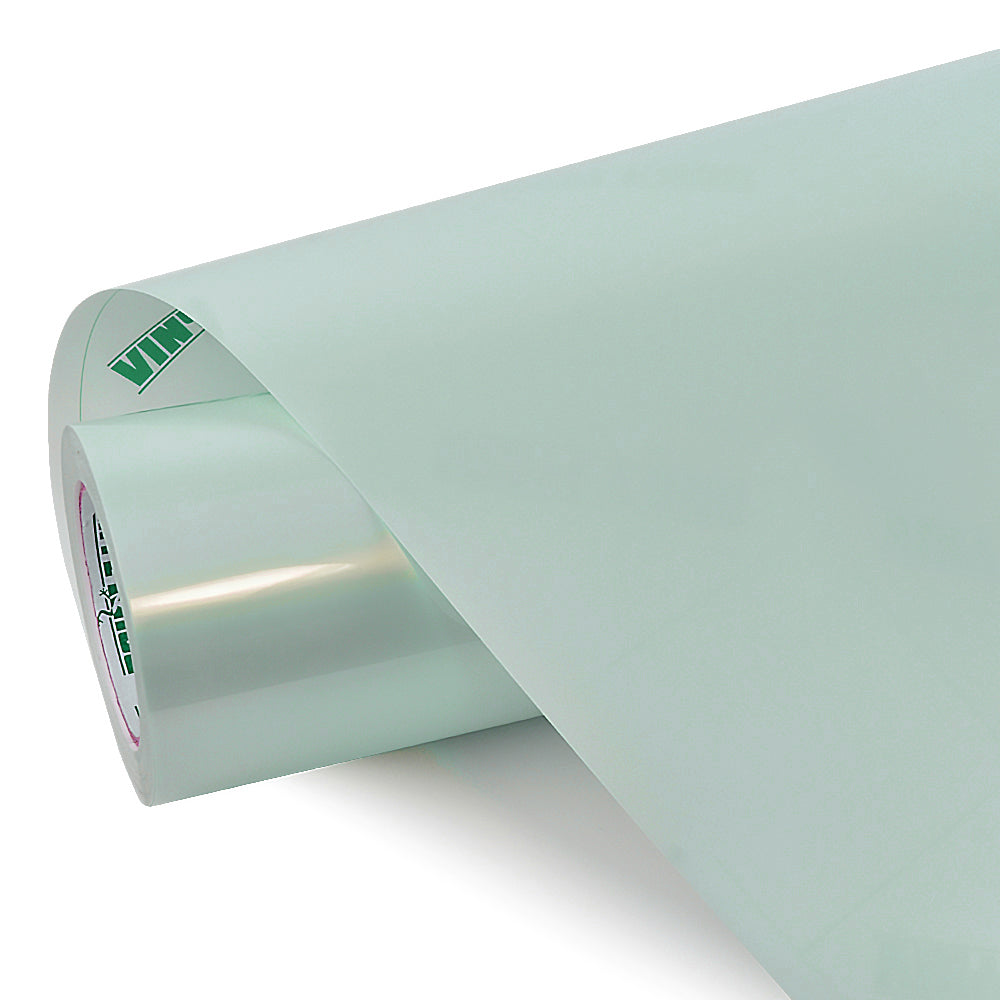

Our products are composed of 4 layers, starting from the outer edge is 1st layer that is to protect the underneath vinyl and its called protection layer. After that the high grade polymeric vinyl supported with pressure sensitive acrylic adhesive. Lastly there is a layer of 160g double sided silicon coated release liner.



Material

• High Grade Polymeric Calendared Vinyl Film
• Fashionable, Stunning Color

• With Air Release Channel
• Bubble-free Application

• Slideable; Repositionable

Medium Stretchable

The Maximum is 30 %

Functions

Recommended Uses

▲ Standard Size & Appearance

Classification		Unit	Spec	Remark
Thickness	Top protected film	um	36±2%	PET/PVC
	Surface materials	um	115±2%	High-grade PVC-Polymeric
	Glue	um	30±2%	High-quality Solvent-based
	Release liner	um	180±2%(paper)/ 130±2%(plastic)	－
Surface		－	Opaque	－
Width		mm	1520±0. 01%	－
Length		mm	1800+1%	－



Physical properties

▲ General Properties

Features		Test Method	Results
Release force N/25mm		25℃ and 50%	0.12
Initial tack g/25mm		under 26℃ and 64%, GB31125-2014	987
Peel Strength N/25mm		25℃and 42%, GB/T2792-1998	7.25
Holding power(h)		25℃ and 50%, GB/T4851-1998	72.09
Shelf life		stored in +10°C to +20°C, relative humidity 50%, in original package, away from direct sunlight, clean and dry place	2 years
Application temperature		/	+20℃ to +30℃
Aging Test 1		7 days under 65°C	No adhesive residue with heat
Aging Test 2		10 days under 65°C	No adhesive residue without heat
Shrinkage		/	less than 4%

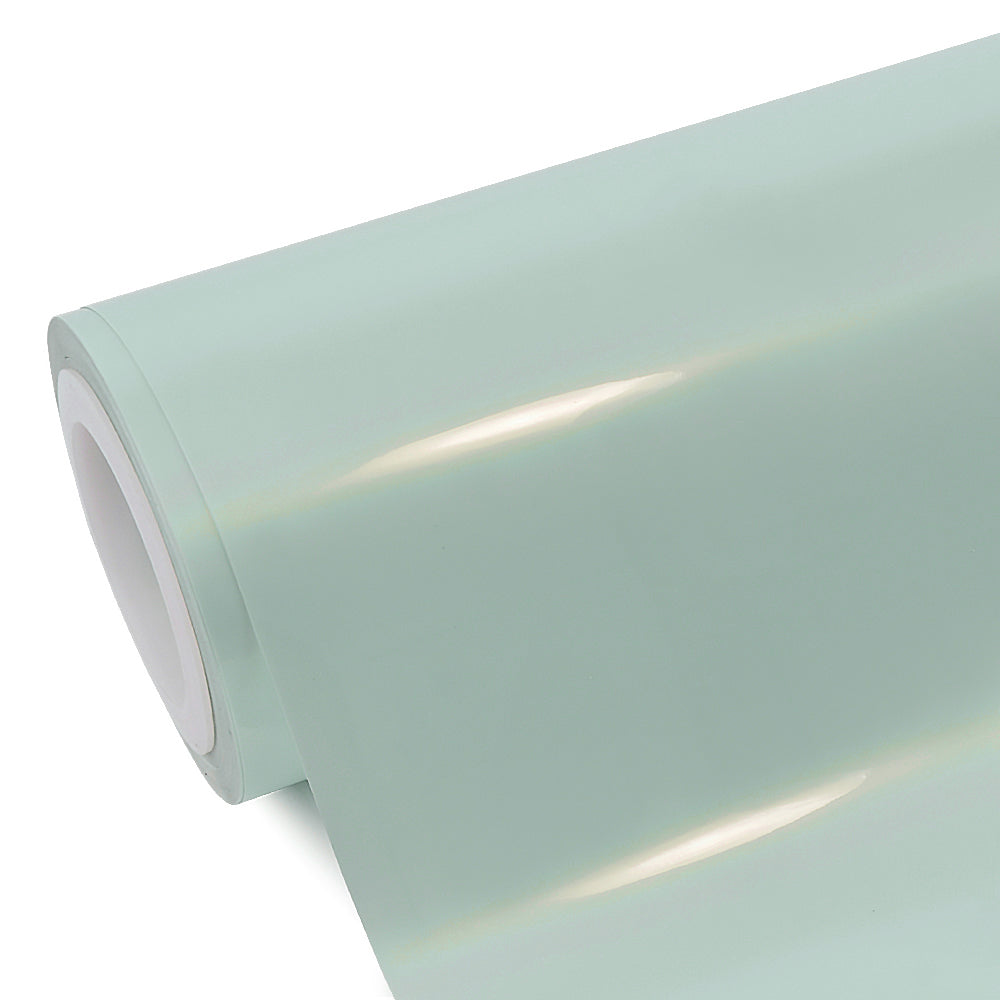

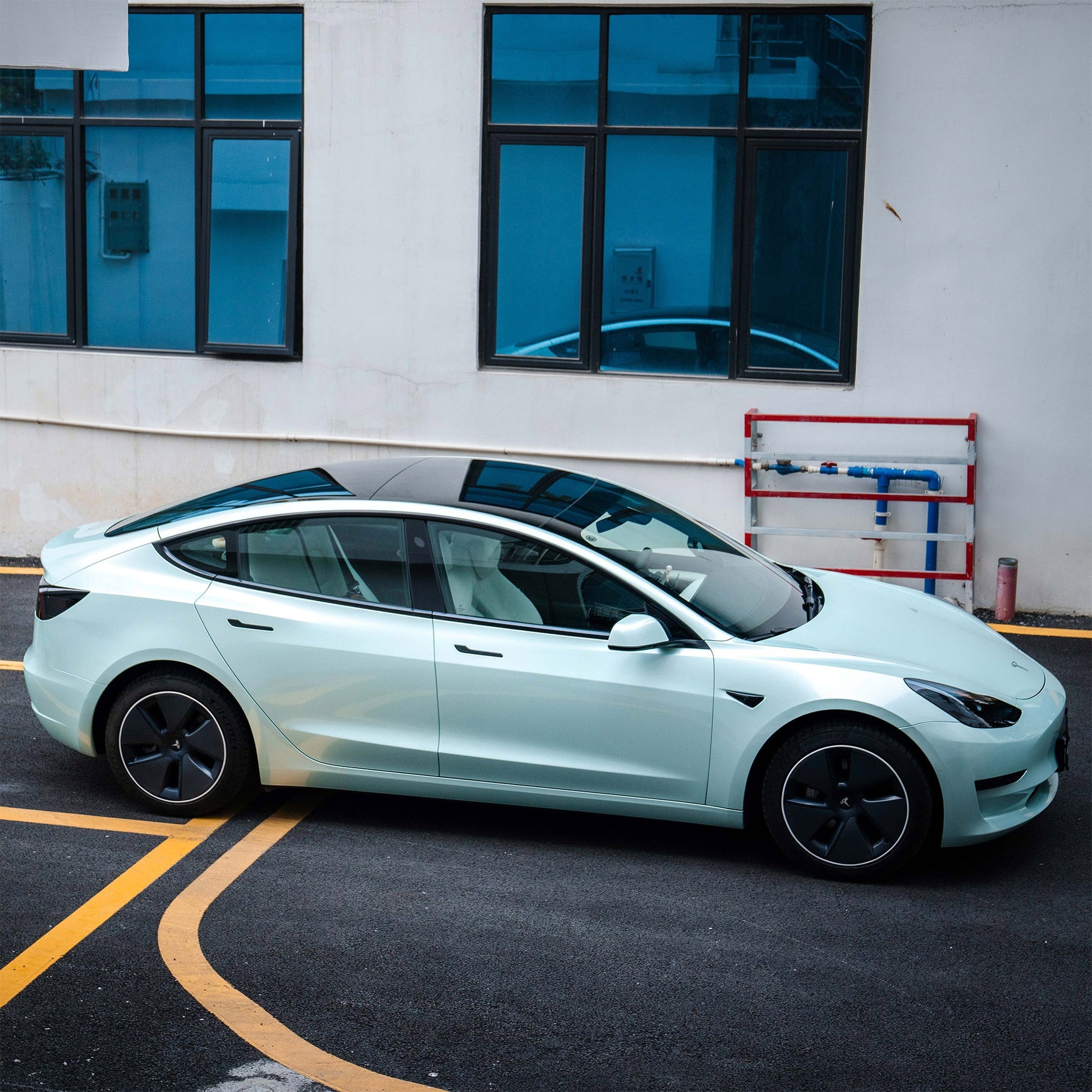

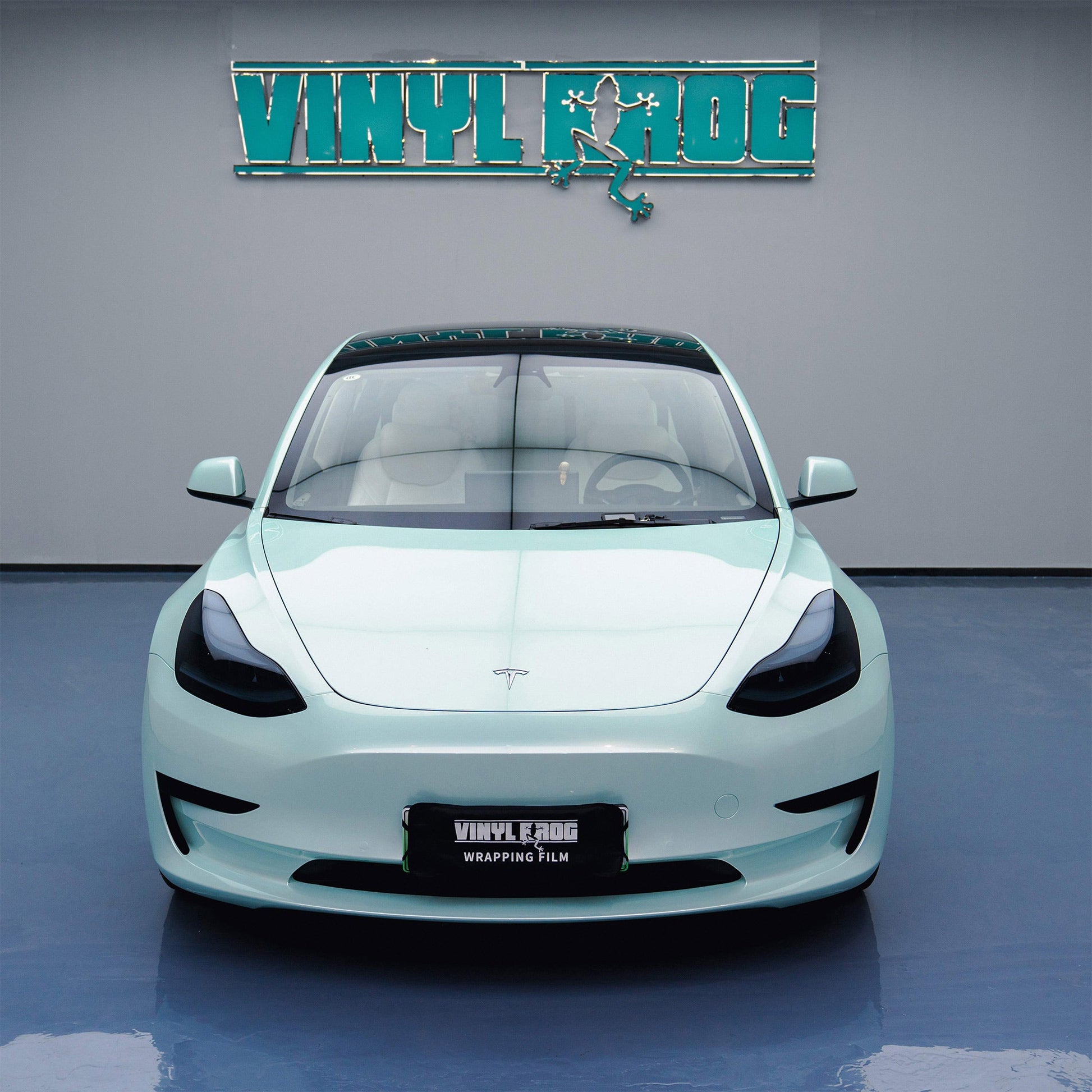

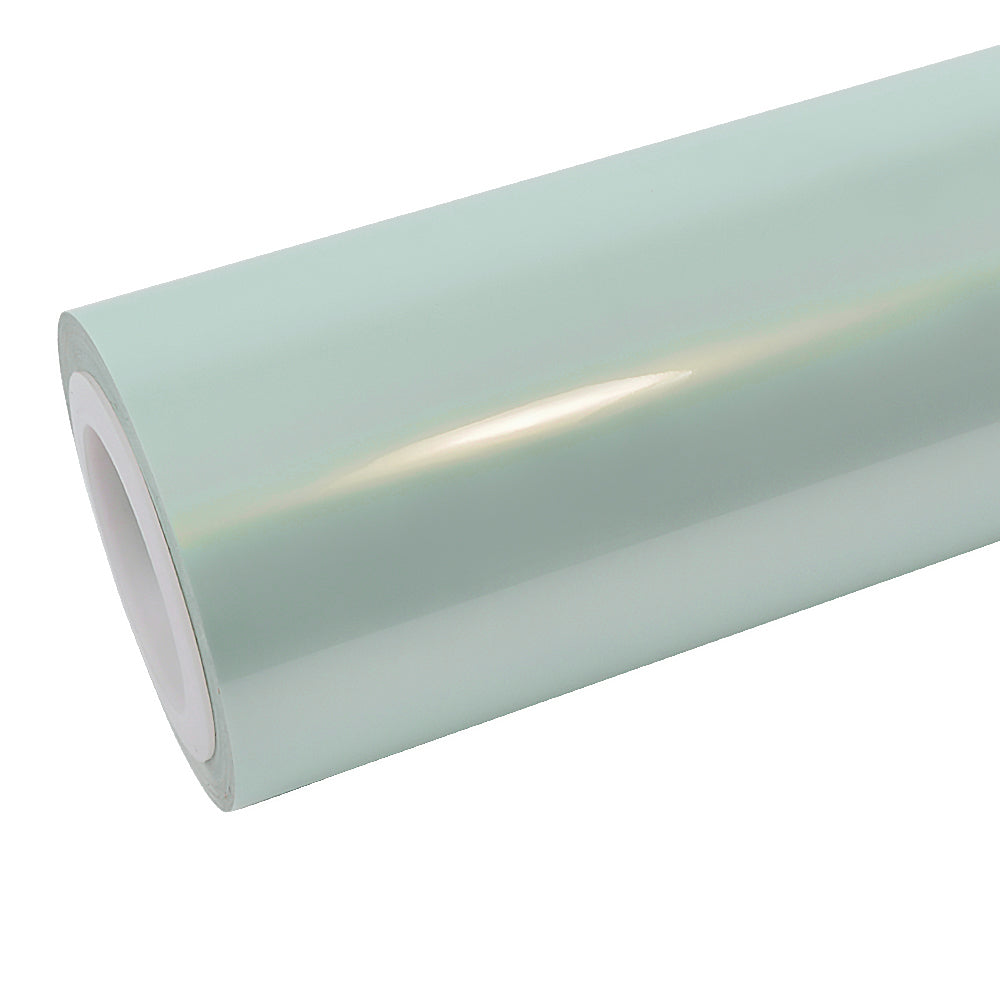

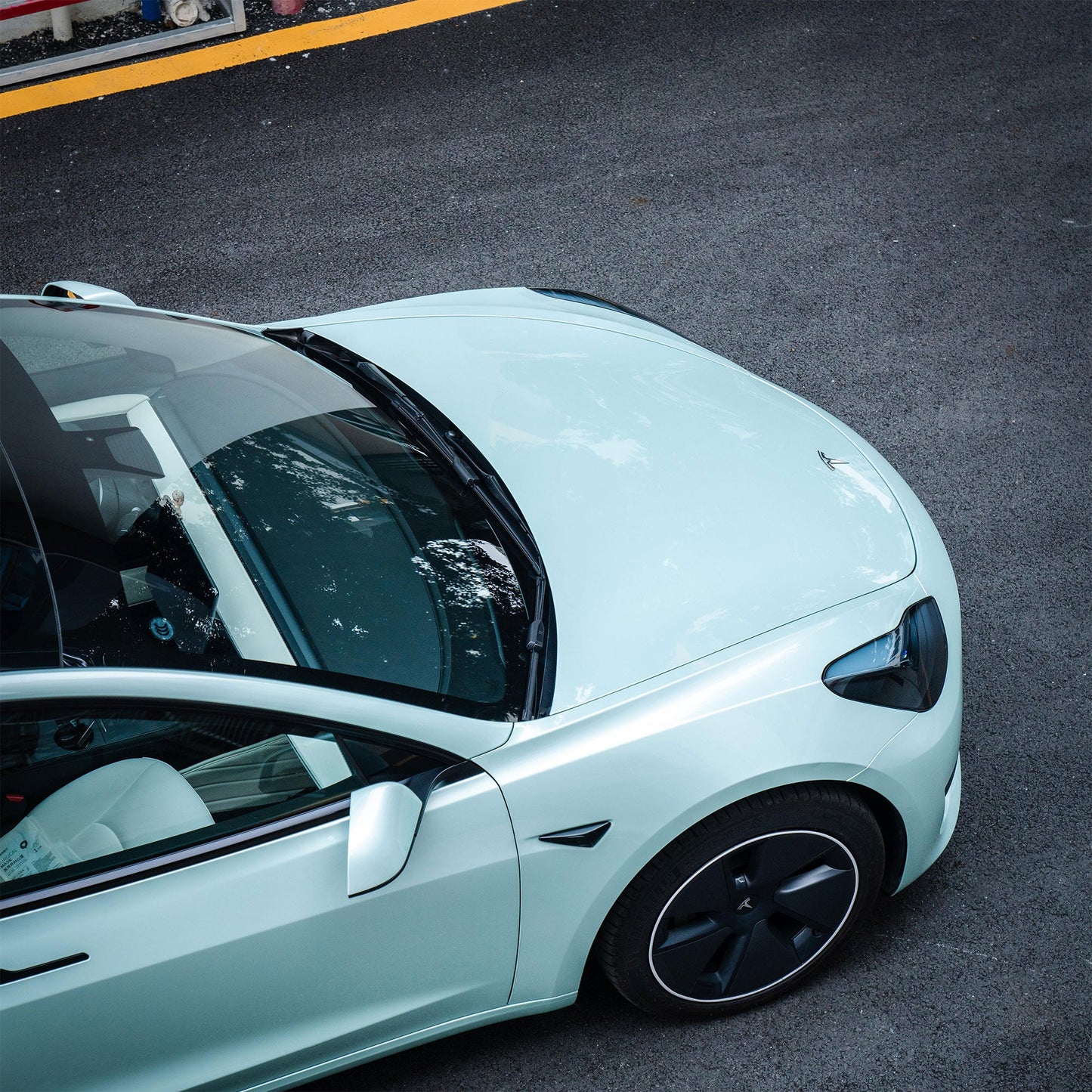

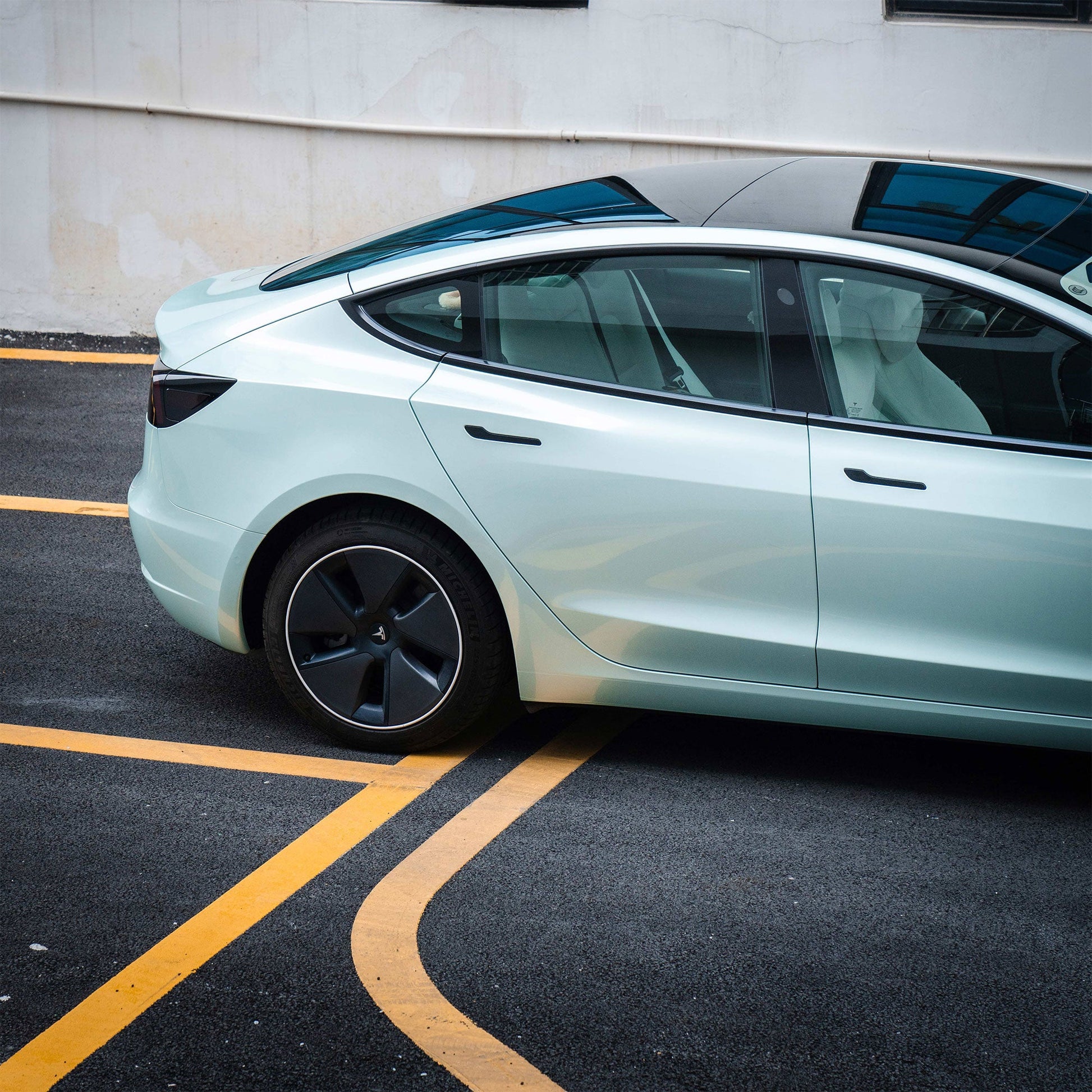

If you're looking for a classic and durable look that stands up to the elements, this smooth and glossy jade green vinyl is a perfect choice. Vinyl wraps are ideal for use on vehicles and equipment exposed to environmental conditions such as rain or sunlight because these coatings tend to last longer than paint. Wrapping your car in the Jade Green vinyl will revolutionize the look of your vehicle. This vinyl wrap is made from an ultra-durable vinyl material that is guaranteed to last for years.

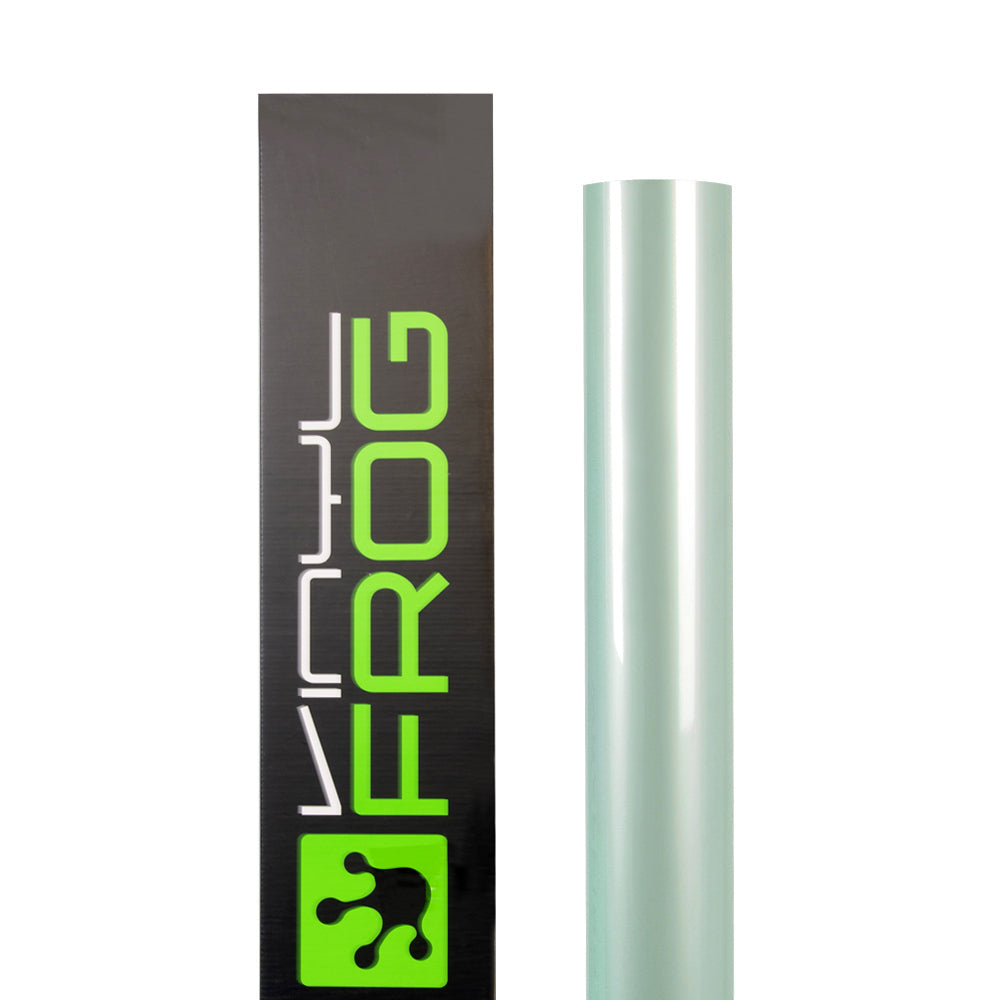

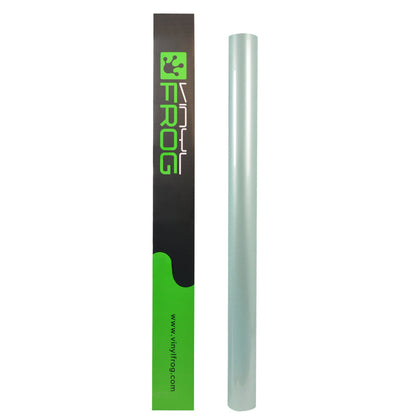

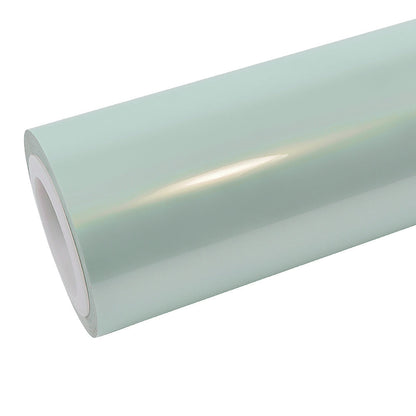

Our High Glossy Jade Green Vinyl Wrap is a professional quality, high gloss, calendared vinyl film that can be applied to vehicles, boats, and other surfaces. It lasts 2 to 5 years, depending on environmental elements. This glossy finish works great for cars with darker colors or black. It covers up imperfections, making it ideal for repair jobs and scratches.

The material comes in six different sizes. With this, you will be able to choose the size that suits you best! The material itself has many great benefits such as being waterproof, heat resistant, and scratch-resistant! This vinyl wrap also features air release channels on the back of the material for easy installation without bubbles or wrinkles!

Features High Glossy Jade Green Vinyl Wrap

• High-quality vinyl material with a glossy finish
• Easy to install, low-temperature application
• No Residue after Removal

Our high gloss Jade Green vinyl wrap has a smooth texture and the ability to hold up against scratches and scuffs. You can even apply this color to your existing car graphics or paint job with ease.

Recommended application tools: Squeegee, buffer, knife, masking tape, heat gun, magnets, gloves, IRR thermometer, IRR heater
Application method: Standard methods for calendered films. No overstretching and overheating and Post heating is necessary.
Post-heating temperature: 110°C flat surfaces, 130°C curves, and overlaps
Aftercare: PH neutral, Avoid wax or solvents

CAUTION!
The images, colors, and finishes on the screen are approximate. For the real representation of the product always check the color swatch.
